Equipped with precision machining equipment such as CNC machine tools, imported turning centers, imported five-axis walking machines, Ningjiang CNC gear hobbing machines, and precision grinding machines, our products achieve an accuracy of 6-7 and can undergo double-knife precision rolling. Our reliable quality is a result of utilizing sophisticated technology.
| Processing method | Processing picture | Machining accuracy | Tooth surface finish | Processing efficiency | Range of application | |

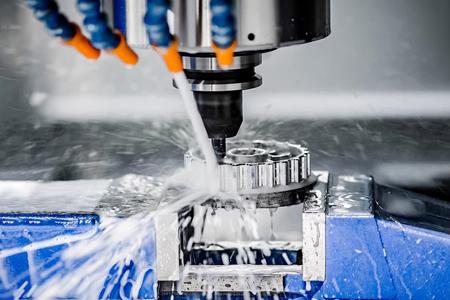

| Milling teeth |  |  | 9 | 6.3-3.2 | low | Low precision cylindrical gears, bevel gears,Worm gear |

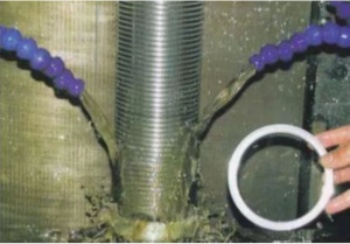

| Broaching gear |
| 7 | 1.6-0.4 | high | Gear broaching machine complex to manufacture | |
| Gear shaping |
|  | 8-7 | 3.2-1.6 | Higher | Internal gears,sector gears,herringbone teeth Wheel,gear with convex,uch smaller spacing coupling gear |

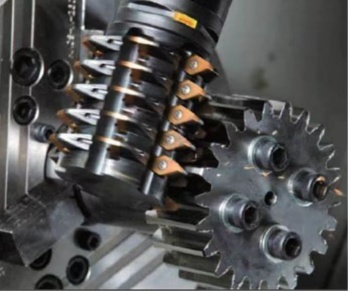

| Hobbing |
| 8-7 | 3.2-1.6 | Higher | Straight cylindrical gear,helical cylindrical gear Wheel, wprm gear | |

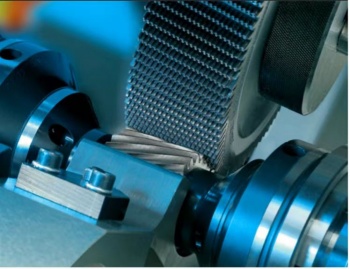

| Shaving gear |
| 7-6 | 0.8-0.4 | high | Finish unquenched cylindrical gears | |
| Gear honing |
| Not much improvement | 0.8-0.4 | Very high | Finish unquenched cylindrical gears | |
| Gear lapping |
| Not much improvement | 1.6-0.2 | Very high | Finish unquenched cylindrical gears | |

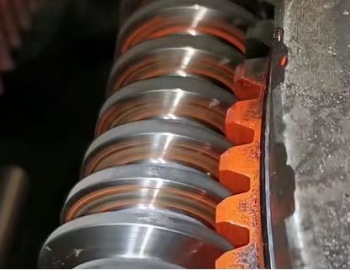

| Tooth grinding |
|
| 6-3 | 0.8-0.2 | Lower | Finish unquenched cylindrical gears |

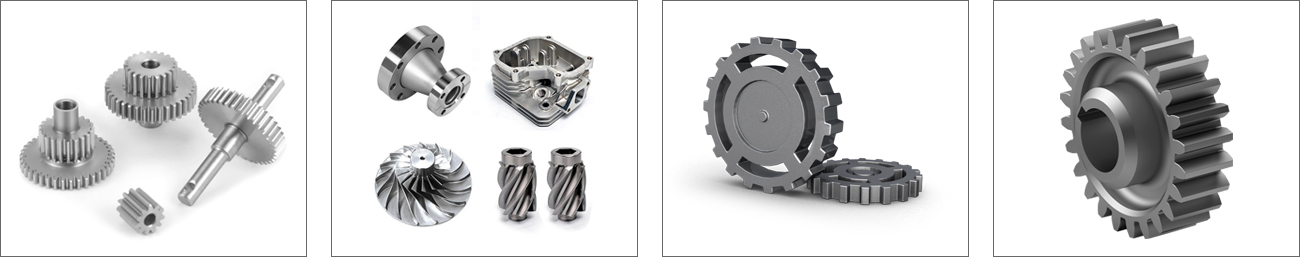

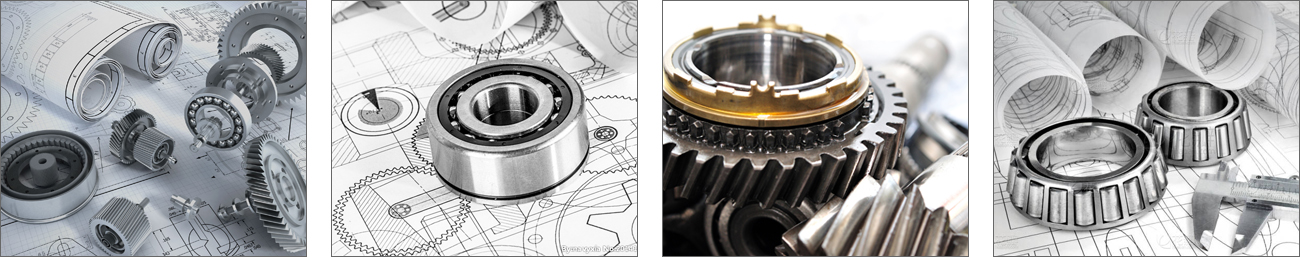

A section of the product display
